Ch 5 Solutions: I’m Up and Down, and Round and Round Class 9 Math NCERT

The content of the page is updating daily. To provide you the best and accurate solutions we are consulting with experts, so this will take time. The post will be completed by today night, hopefully!

Exercise Set 5.1

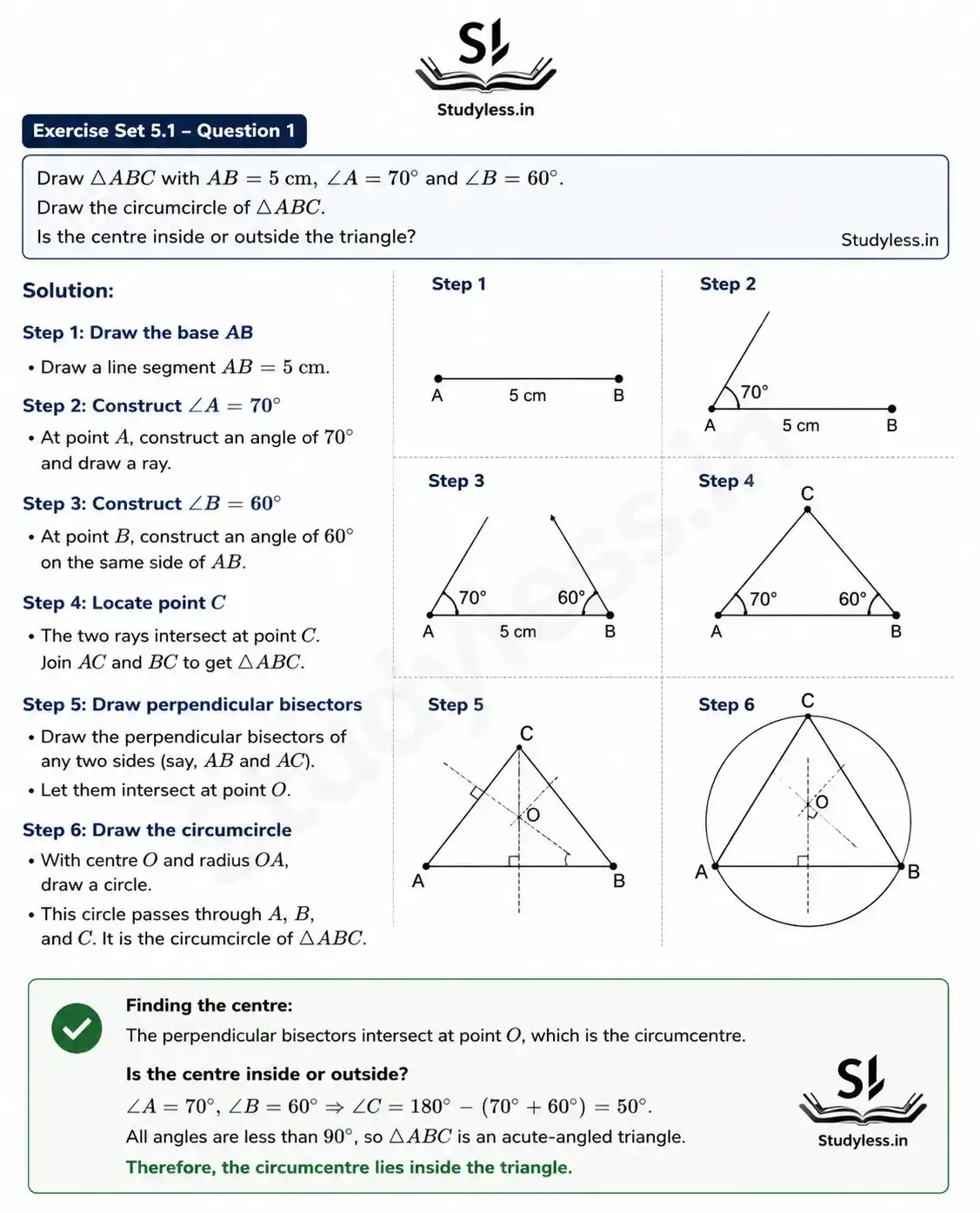

Q1. Draw ΔABC with AB = 5 cm, ∠A = 70°, and ∠B = 60°. Draw the
circumcircle of ΔABC. Is the centre inside or outside the triangle?

Solution:

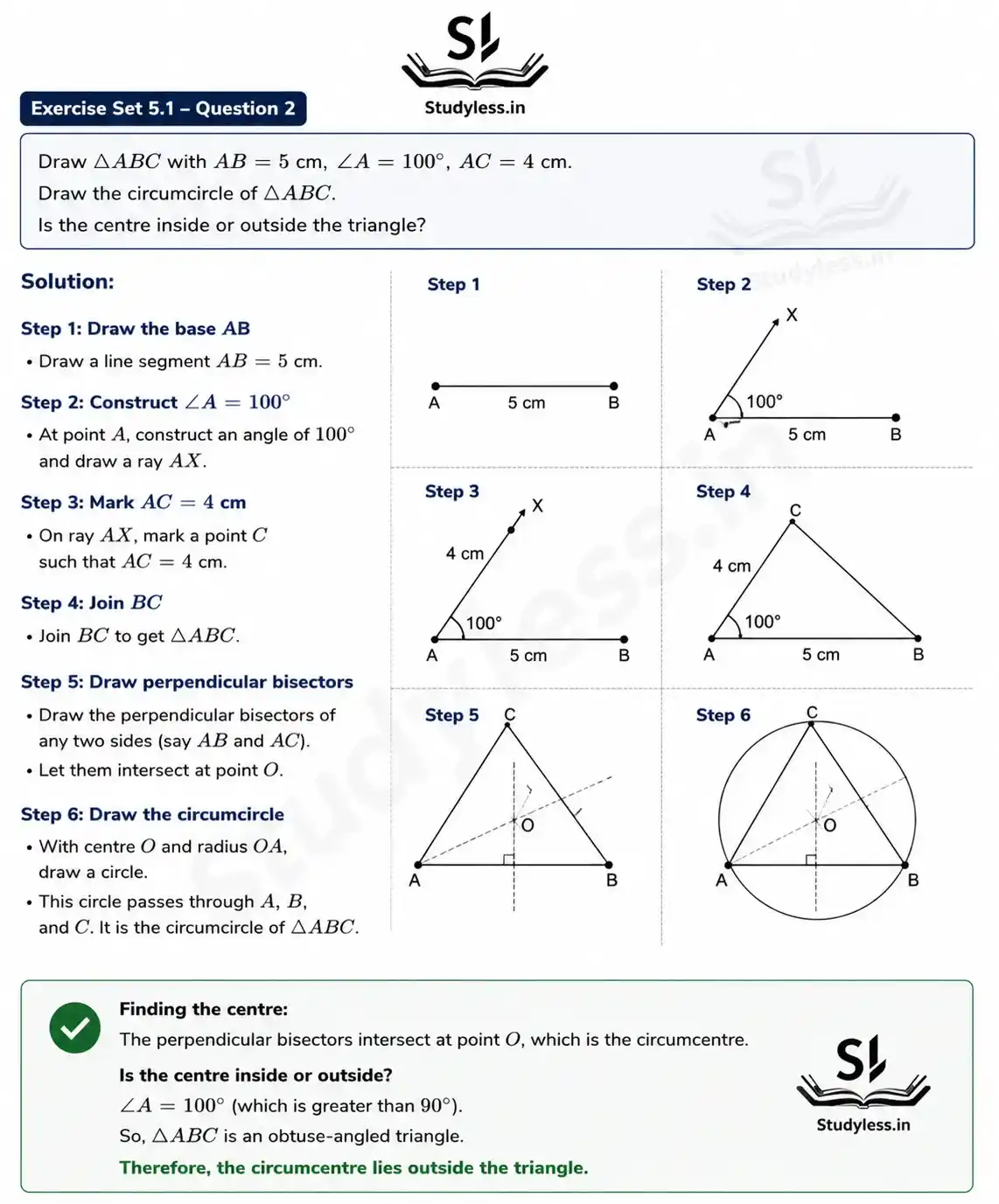

Q2. Draw ΔABC with AB = 5 cm, ∠A = 100°, AC = 4 cm. Draw the
circumcircle of ΔABC. Is the centre inside or outside the triangle?

Solution:

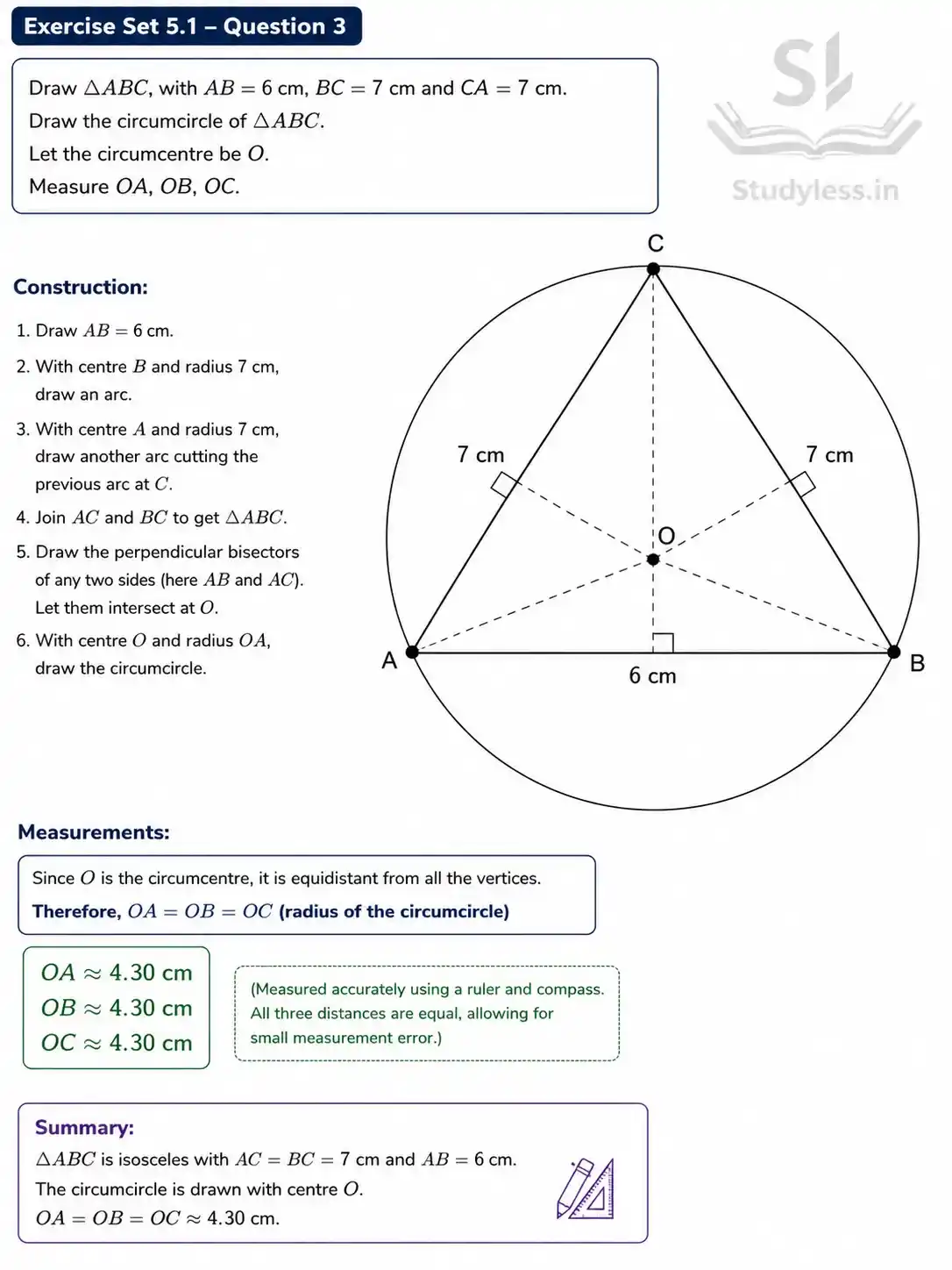

Q3. Draw ΔABC, with AB = 6 cm, BC = 7 cm, and CA = 7 cm. Draw
the circumcircle of ΔABC. Let the circumcentre be O. Measure OA, OB, OC.

Solution:

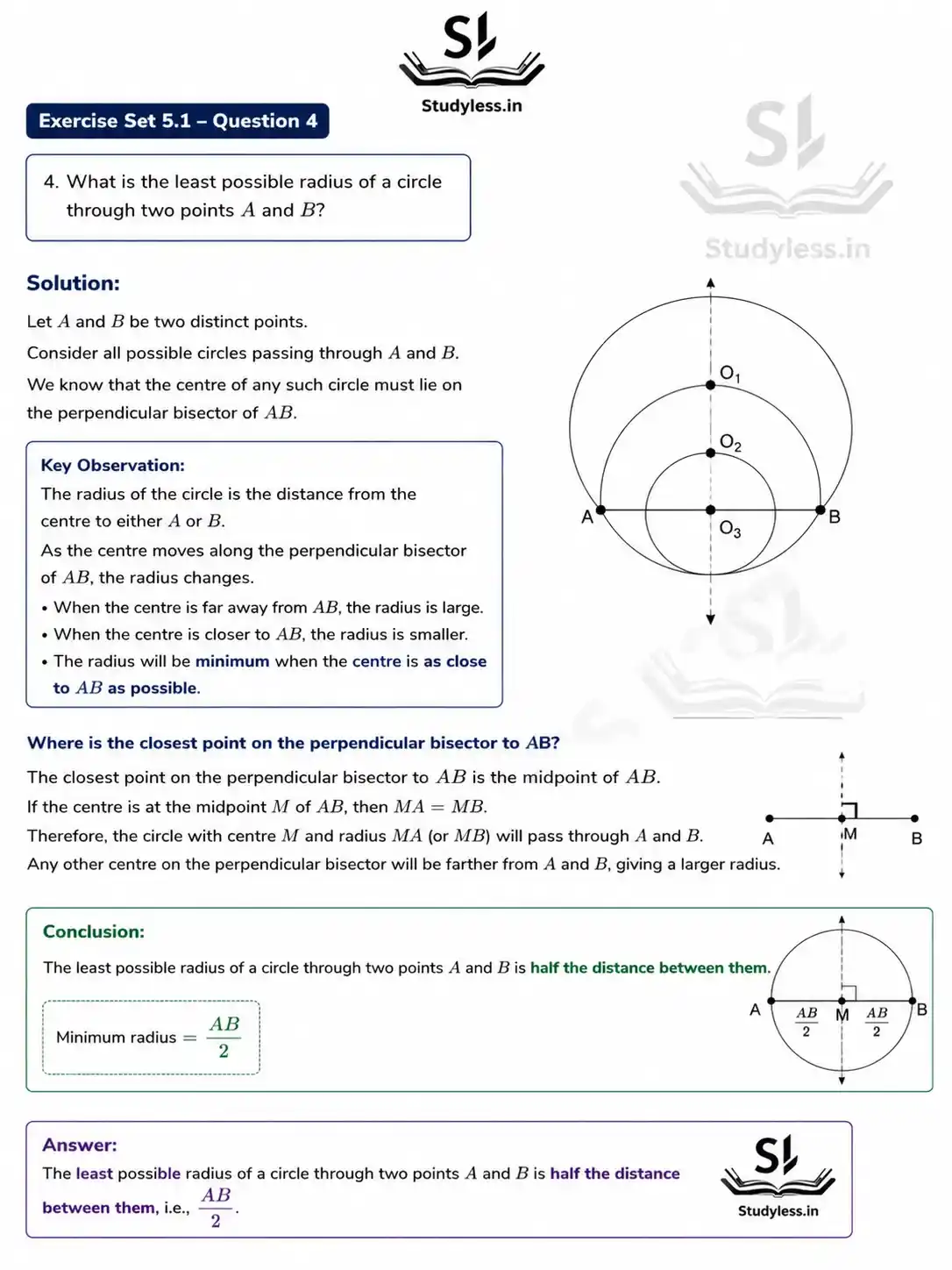

Q4. What is the least possible radius of a circle through two points A and B?

Solution:

Exercise Set 5.2

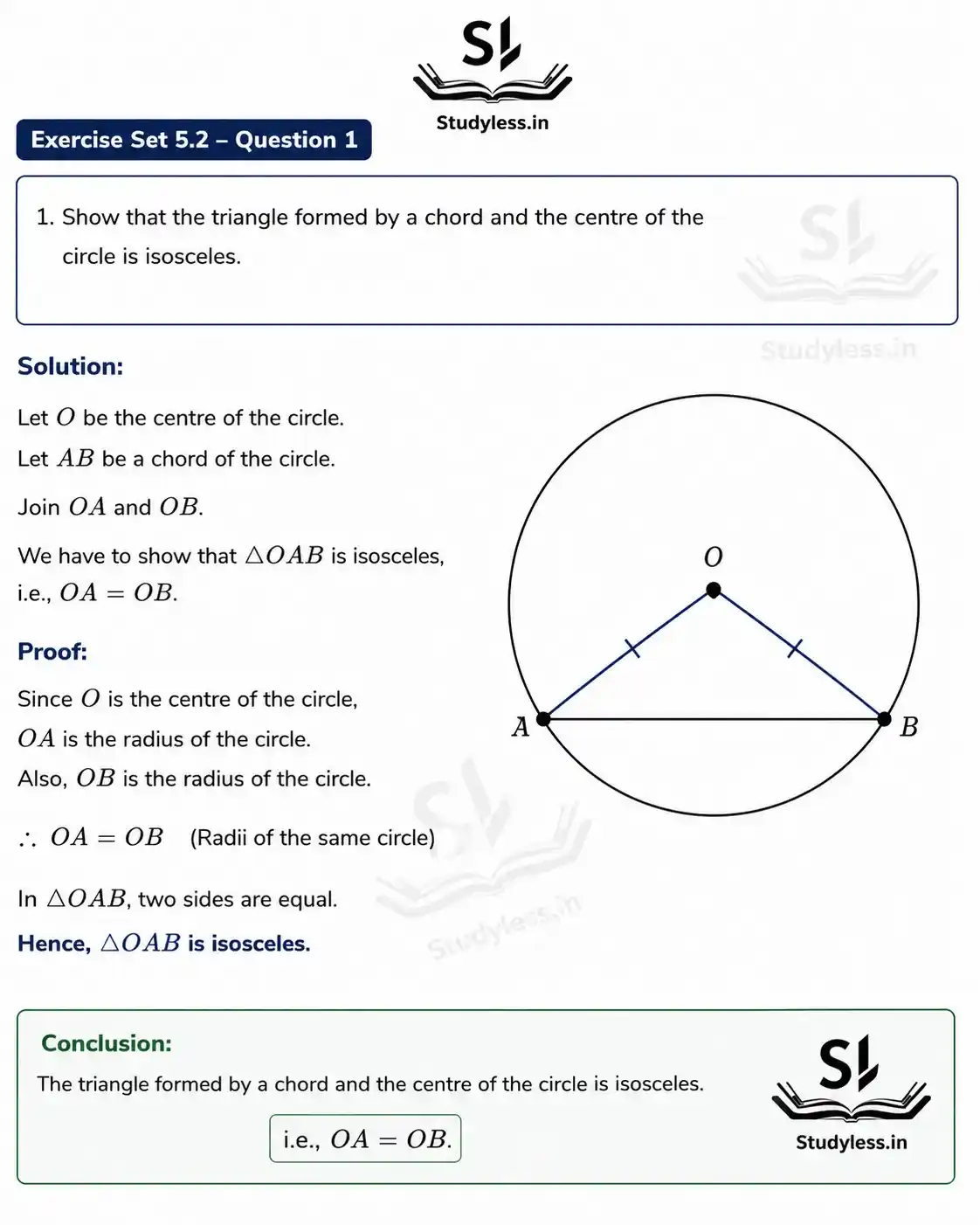

Q1. Show that the triangle formed by a chord and the centre of the
circle is isosceles.

Solution:

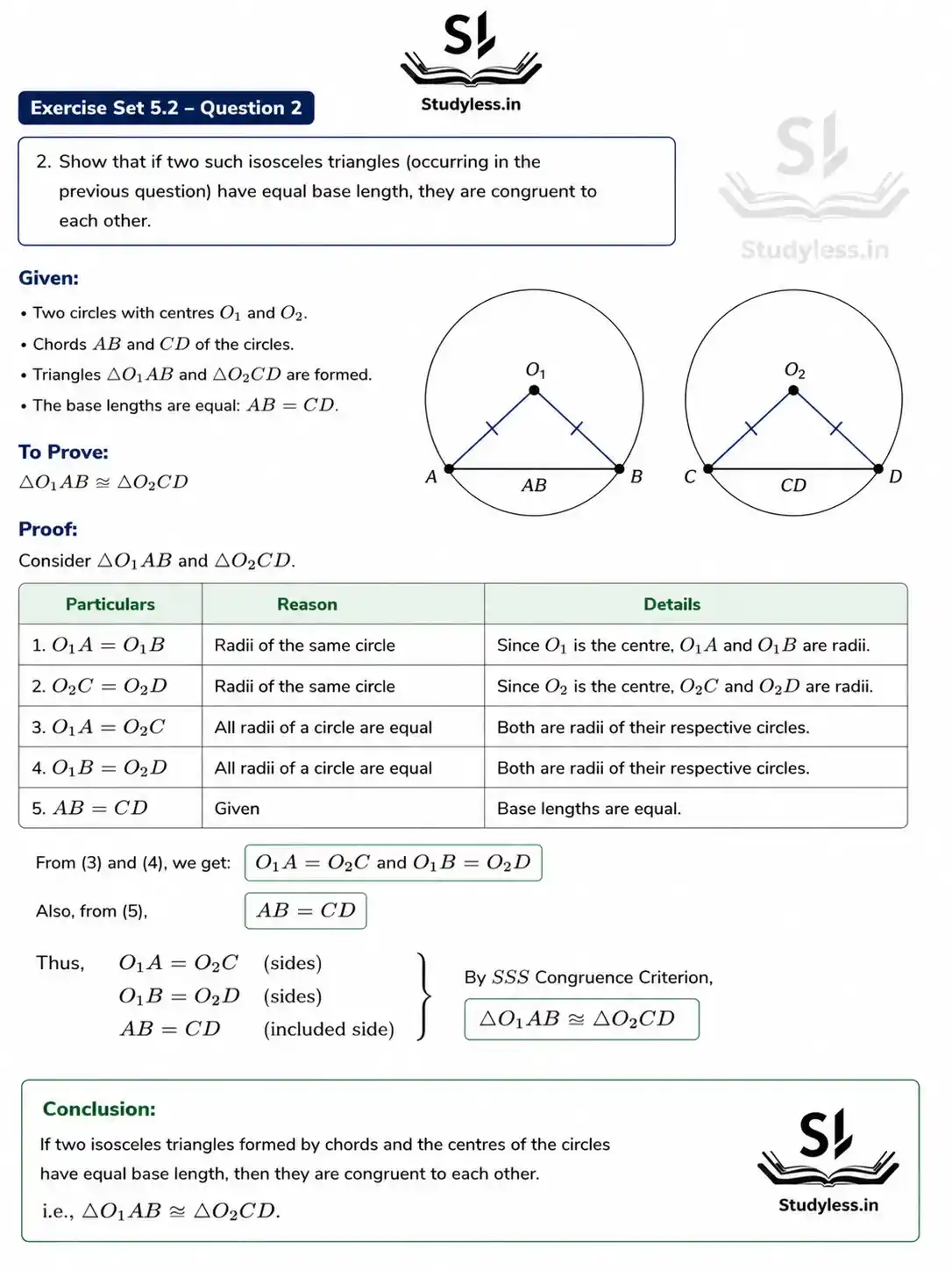

Q2. Show that if two such isosceles triangles (occurring in the previous question)
have equal base length, they are congruent to each other.

Solution:

Exercise Set 5.3

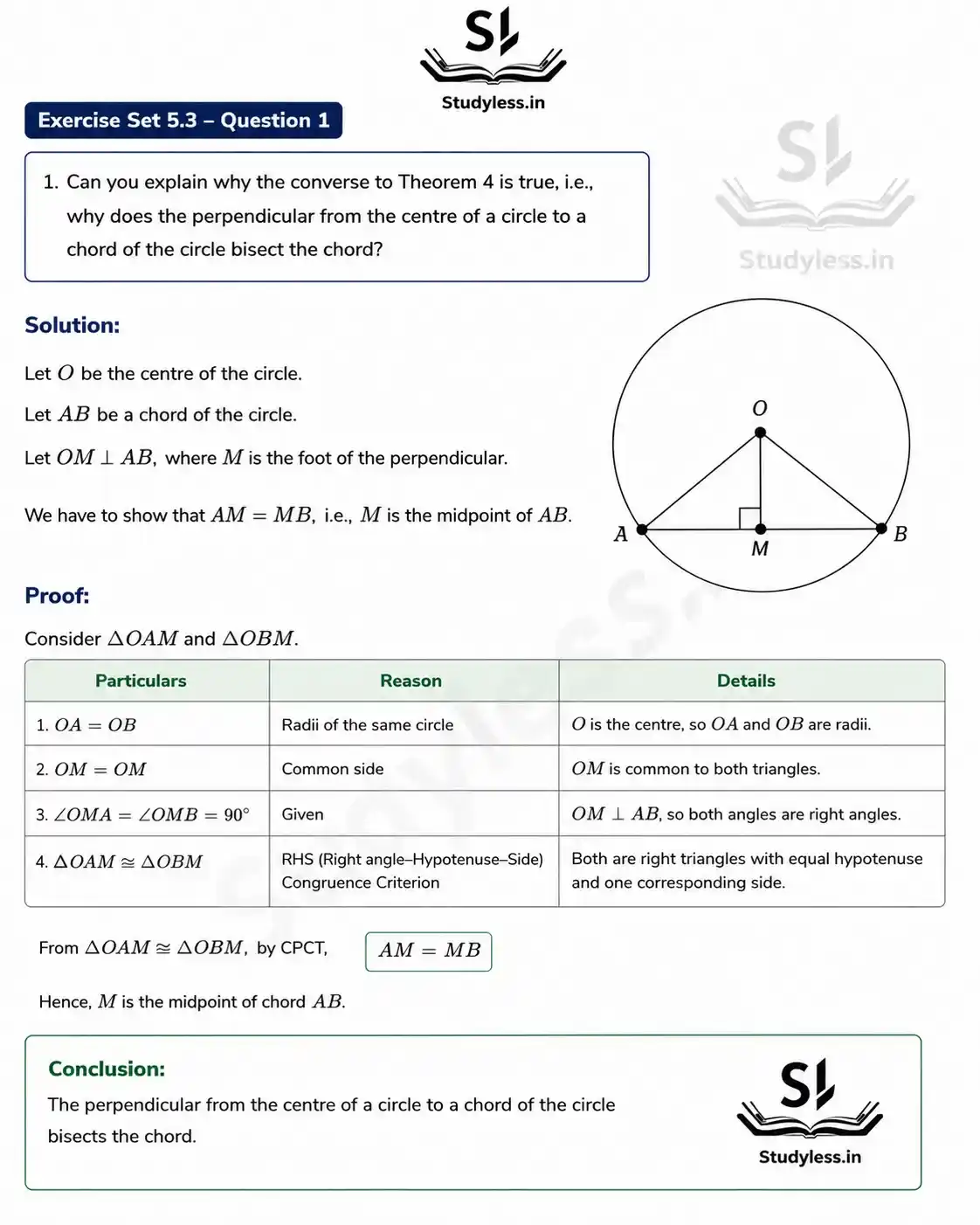

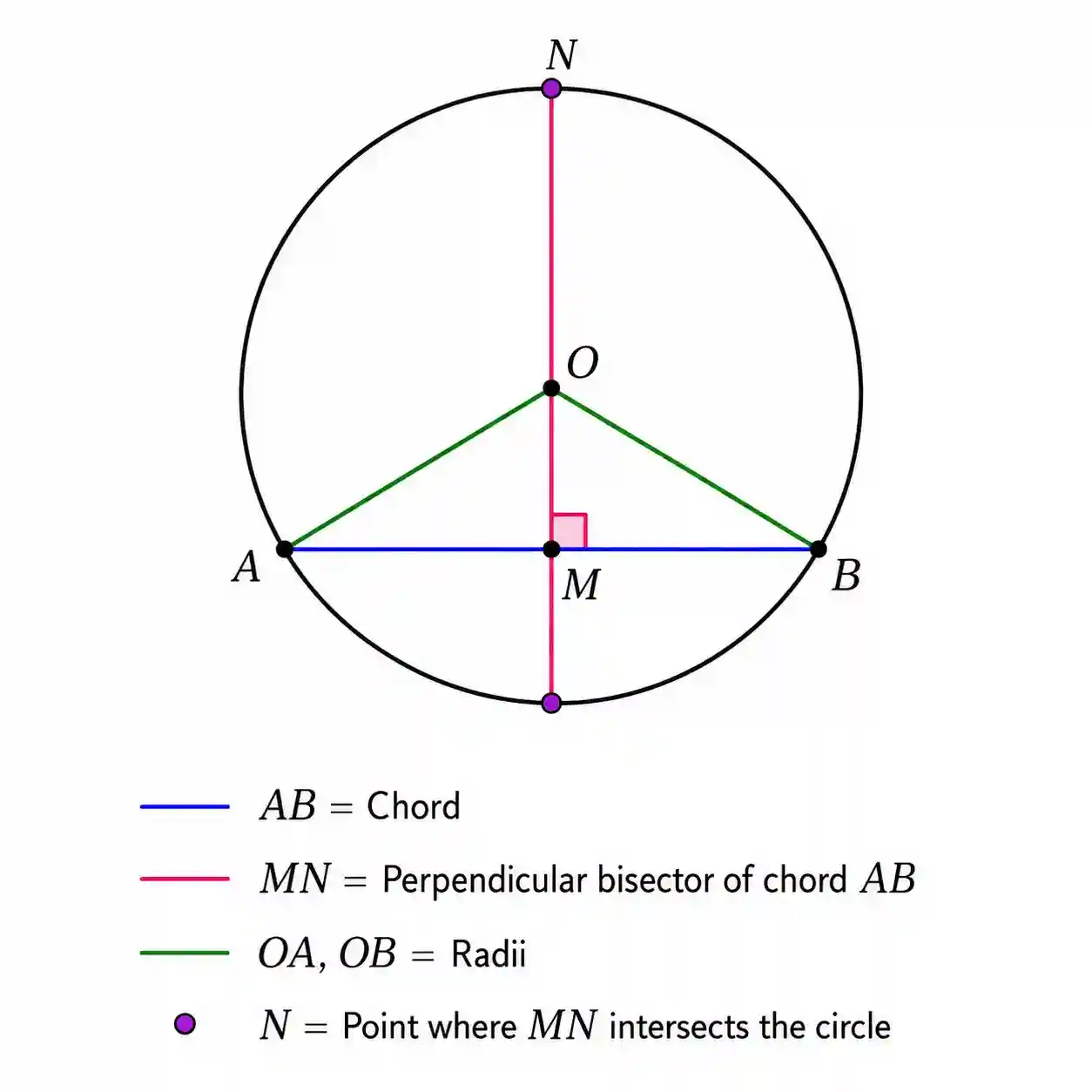

Q1. Can you explain why the converse to Theorem 4 is true, i.e., why
does the perpendicular from the centre of a circle to a chord of the circle bisect the chord?
(Hint: Use Fig. 5.12. You are told that ∠CMA = ∠CMB = 90°. You need to show that AM = BM.)

Solution:

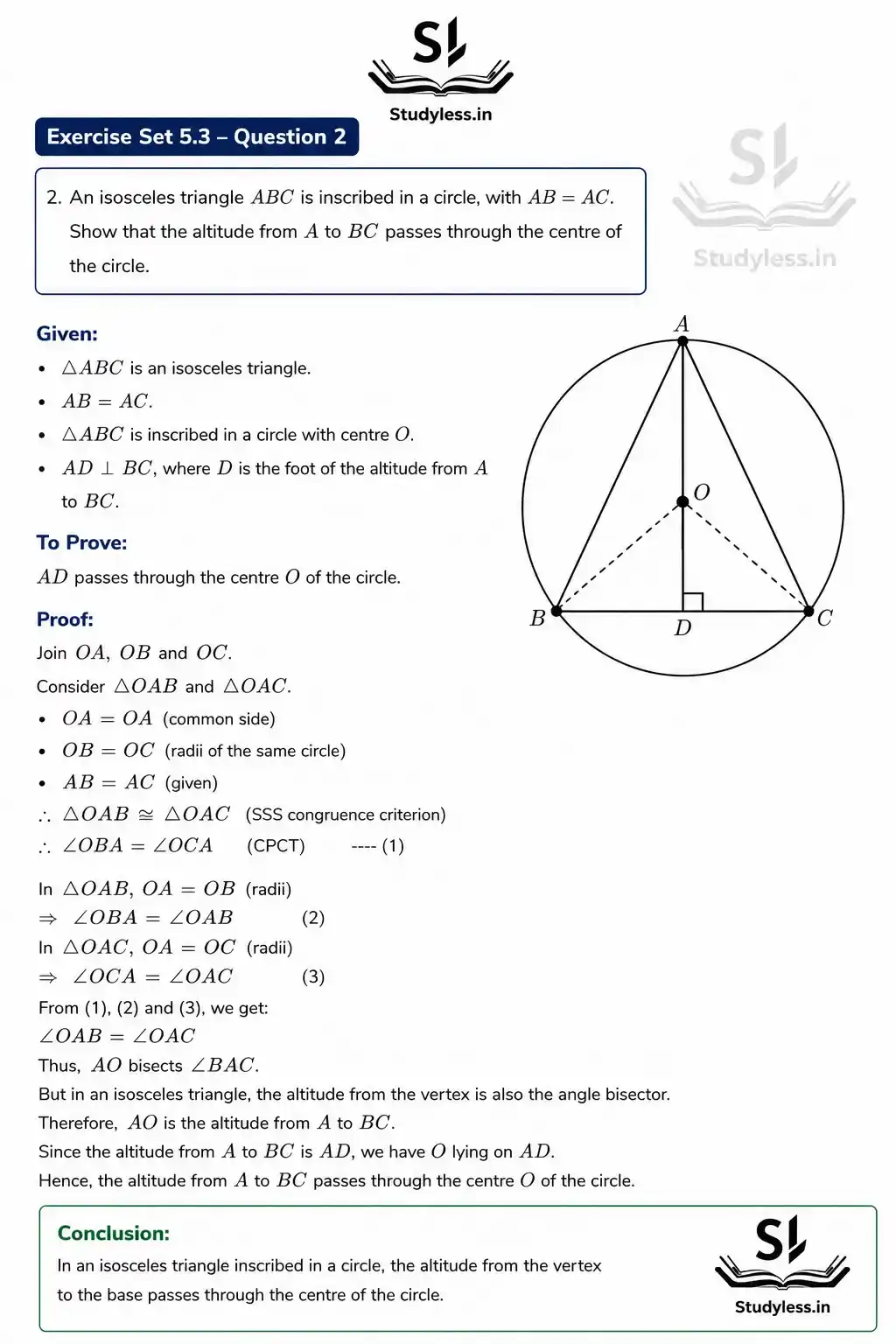

Q2. An isosceles triangle ABC is inscribed in a circle, with AB = AC.
Show that the altitude from A to BC passes through the centre of
the circle.

Solution:

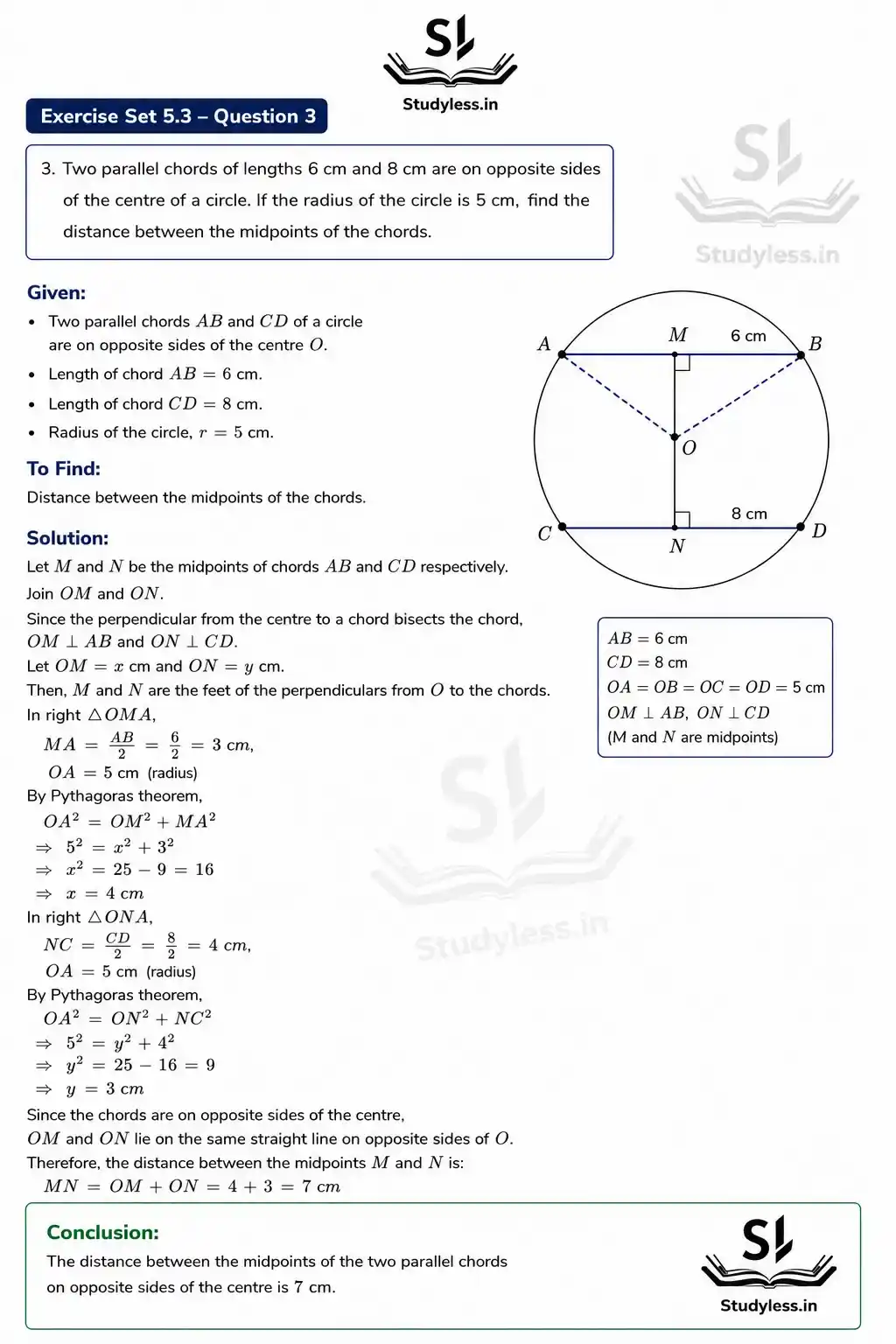

Q3. Two parallel chords of lengths 6 cm and 8 cm are on opposite sides
of the centre of a circle. If the radius of the circle is 5 cm, find the
distance between the midpoints of the chords.

Solution:

Exercise Set 5.4

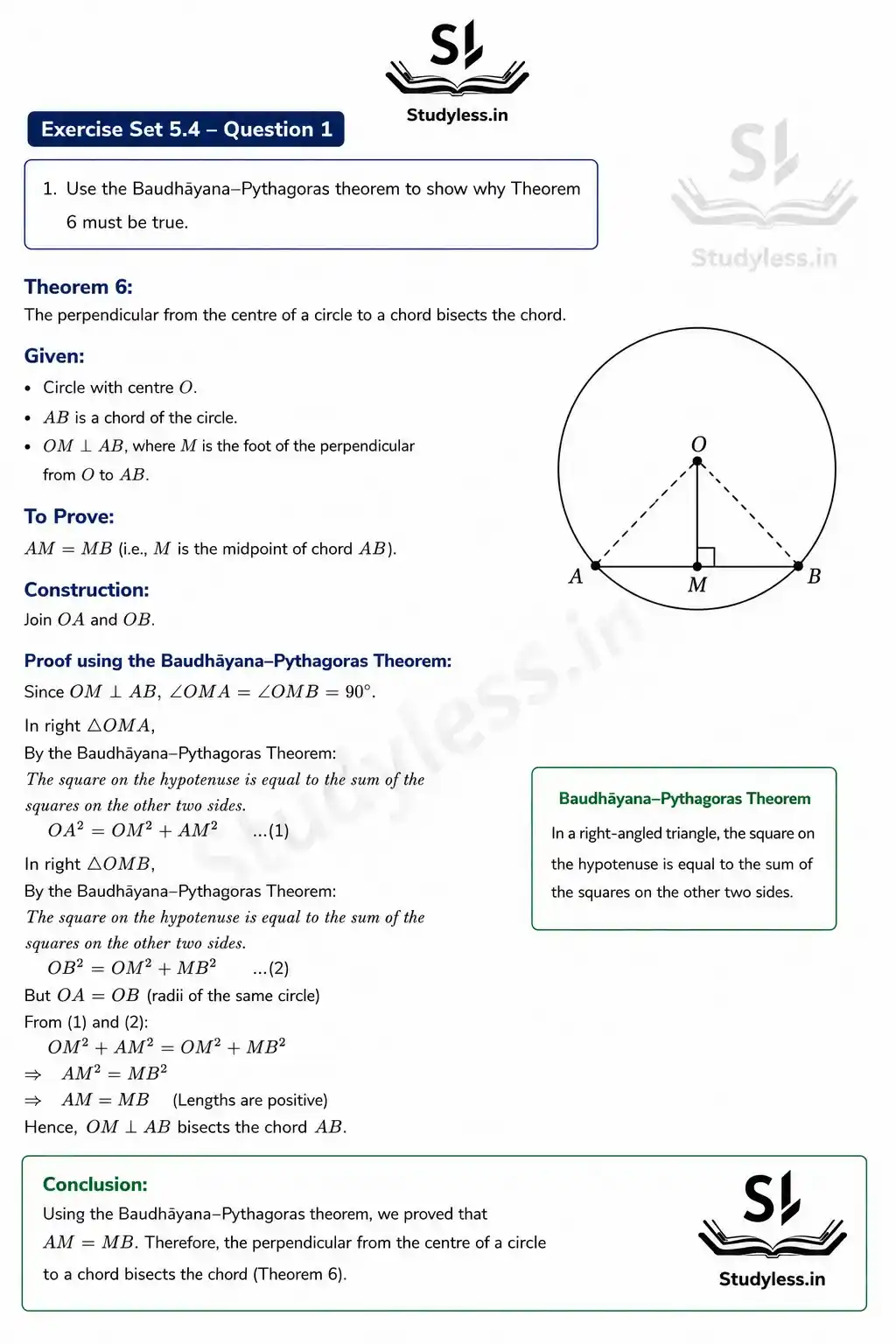

Q1. Use the Baudhāyana–Pythagoras theorem to show why the Theorem
6 must be true.

Solution:

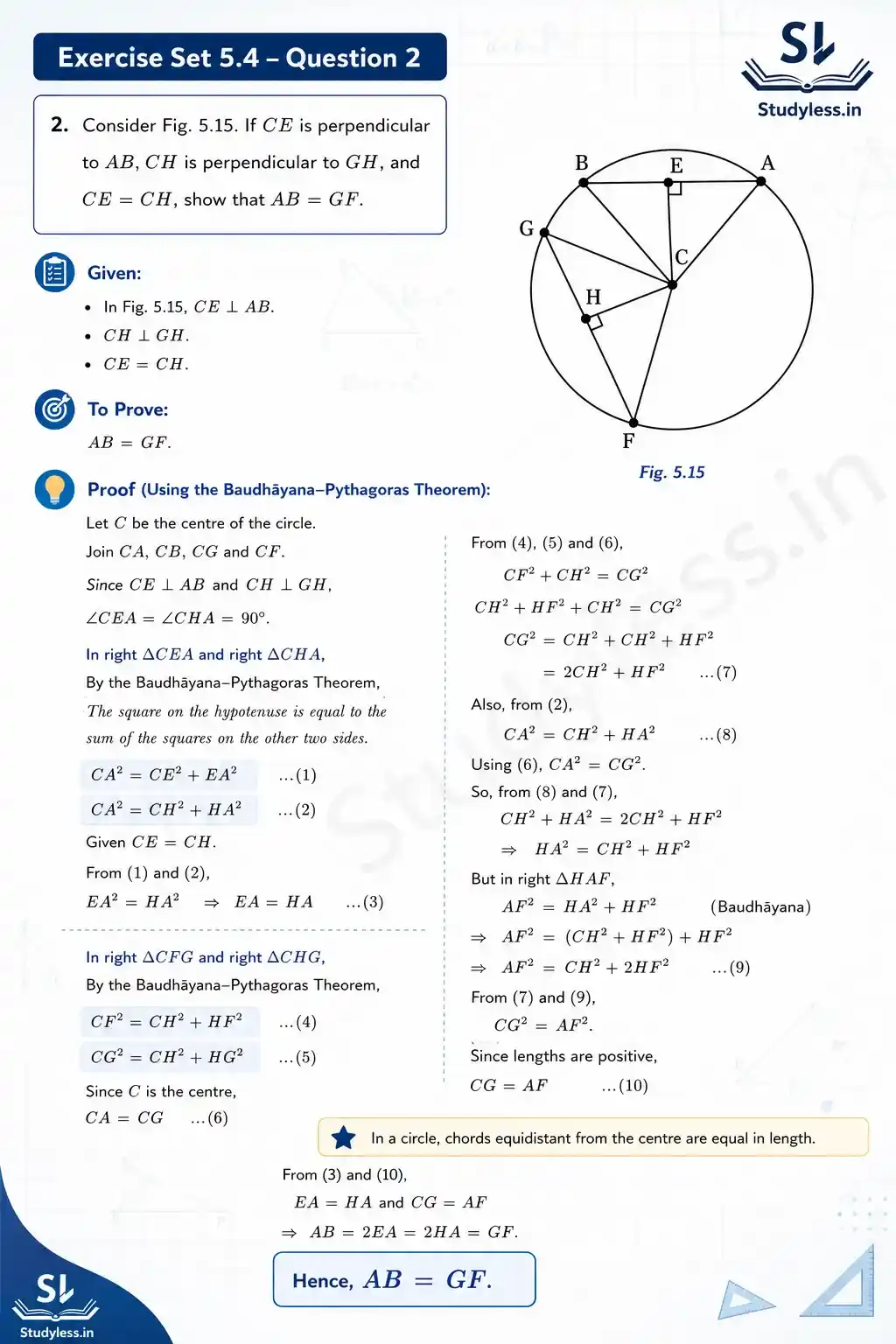

Q2. Consider Fig. 5.15. If CE is perpendicular to AB, CH is perpendicular to GH,
and CE= CH, show that AB = GF.

Solution:

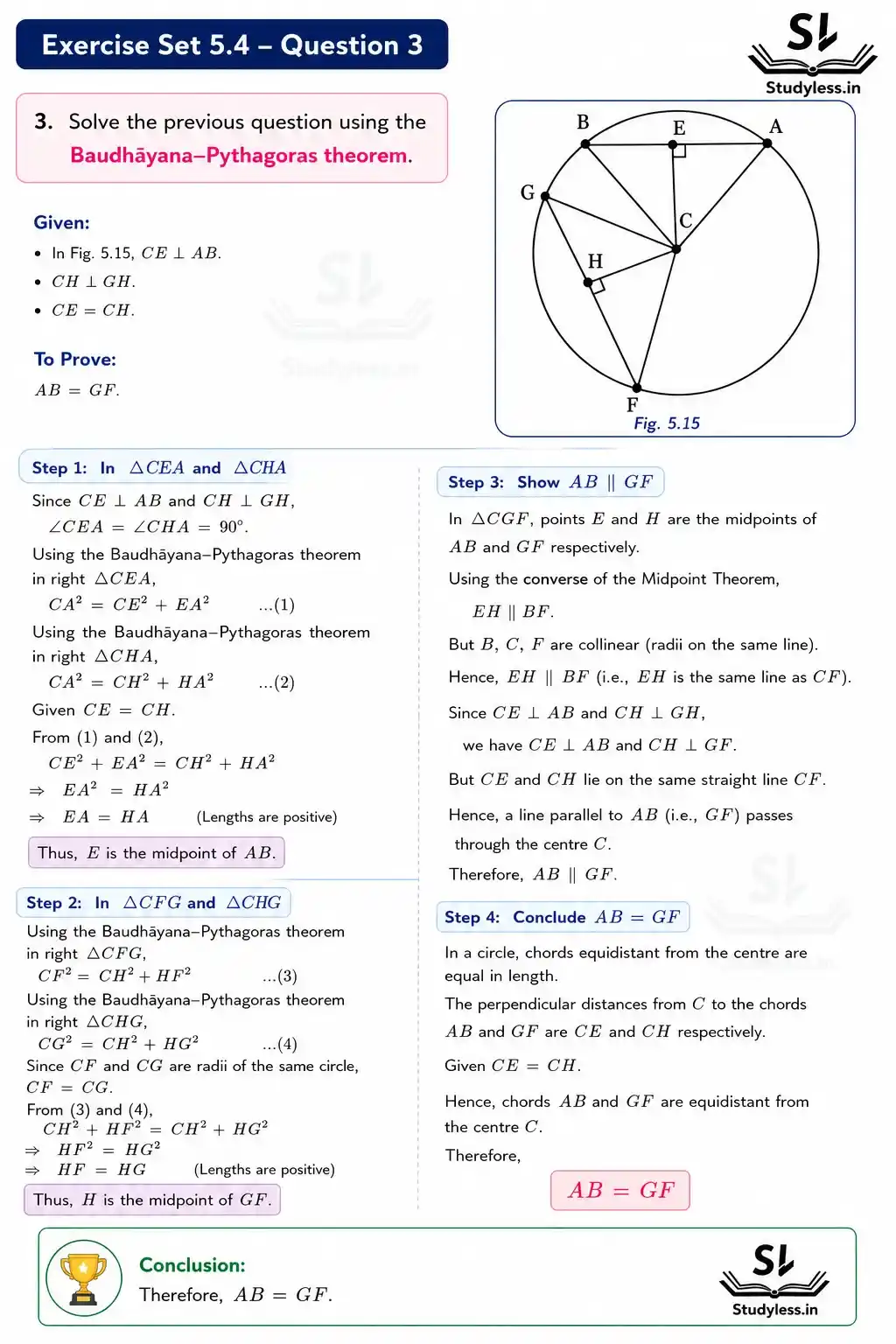

Q3. Solve the previous question using the Baudhāyana–Pythagoras theorem.

Solution:

Exercise Set 5.5

Exercise Set 5.6

Q2. In a circle with centre O, the central angle AOB is 60°. If the radius
of the circle is 12 cm, what is the length of the chord AB?

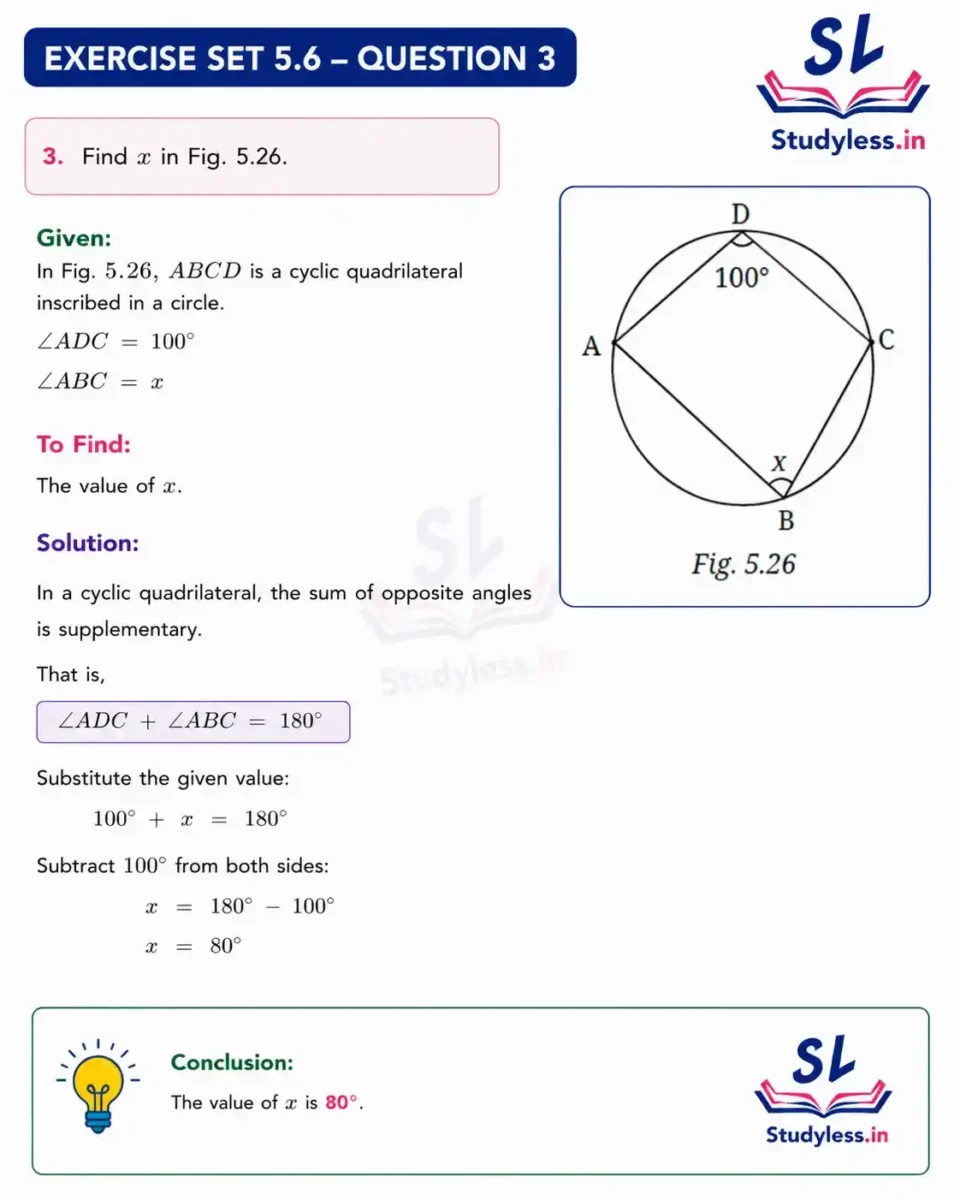

Q3. Find x in Fig. 5.26.

End-of-Chapter Exercises

Q1. In a circle, a chord is 5 cm away from the centre. If the radius of the circle is 13 cm, what is the length of the chord?

Given

• Radius of the circle $r = 13 \text{ cm}$
• Perpendicular distance of chord from centre $d = 5 \text{ cm}$

We know:

$\text{Chord Length}=2\sqrt{r^2-d^2}$

Substitute the values:$$\text{Chord Length} =2\sqrt{13^2-5^2}$$
$$=2\sqrt{169-25}$$
$$=2\sqrt{144}$$
$$=2\times 12$$
$$=24 \text{ cm}$$

24 cm Ans

Q2. An arc of a circle subtends an angle of 70° at the centre. What is
The measure of the angle subtended by the arc at a point on the circle?

Solution:

Given

The angle subtended by the arc at the centre is:$$70^\circ$$

We know the theorem:

$\angle\text{ at centre }=2\times\angle\text{ at circumference}$

Let the angle subtended at a point on the circle be $x$

Then,$$70^\circ = 2x$$

Divide both sides by 2:$$x=\frac{70^\circ}{2}$$
$$x=35^\circ$$

35. Ans

Q3. The diameter of a circle is 26 cm. A chord of length 24 cm is
drawn in the circle. Find the distance from the centre of the circle
to the chord.

Given

• Diameter of the circle $= 26 \text{ cm}$

So, radius:$$r=\frac{26}{2}=13 \text{ cm}$$

• Length of the chord $=24 \text{ cm}$

Half of the chord:$$\frac{24}{2}=12 \text{ cm}$$

Let:

• $O$ be the centre of the circle
• $AB$ be the chord
• $M$ be the midpoint of the chord $AB$

The perpendicular from the centre to a chord bisects the chord.

Therefore,$$AM=12 \text{ cm}$$

In right triangle $OMA$
$$OA=13 \text{ cm}$$
$$AM=12 \text{ cm}$$

Using the Baudhāyana–Pythagoras theorem:

$OA^2=OM^2+AM^2$

Substituting the values:$$13^2=OM^2+12^2$$
$$169=OM^2+144$$
$$OM^2=169-144$$
$$OM^2=25$$
$$OM=5 \text{ cm}$$

5 cm. Ans
