Rediscovering the Roots of Atomic Theory

Two civilisations, independently, asked: “What is everything made of?”

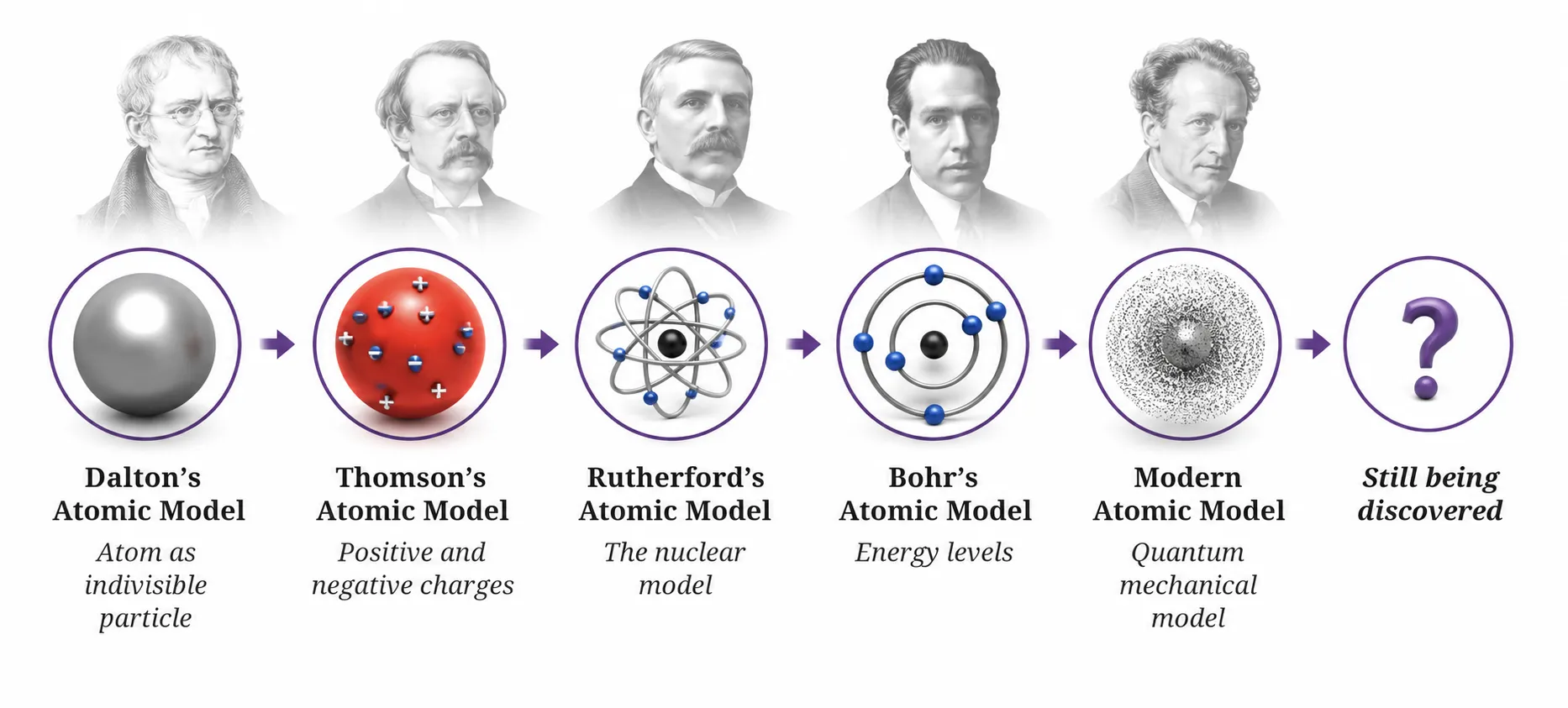

A Short Historical Journey Through Atomic Models

Before the late 19th Century

➽ Atoms = the smallest, indivisible units of matter
➽ Then: discovery of radioactivity — certain elements emit energy & particles
➽ This proved that atoms do have smaller particles inside ➜ not indivisible

Discovery of the Electron — J.J. Thomson (1897)

Experiment:

➽ Electric current through a gas at very low pressure
➽ Glass tube with two electrodes + high voltage applied
➽ Observed rays moving: cathode (−) ➜ anode (+) = called cathode rays

Conclusions:

➽ Cathode rays = streams of negatively charged particles (electrons)
➽ Mass of electron << mass of atom
➽ The cathode ray nature was independent of the cathode material or the gas used
∴ Electrons are present in all atoms, in every element

Key fact: Charge of electron = −1.602 × 10⁻¹⁹ C (written as −1 by convention)

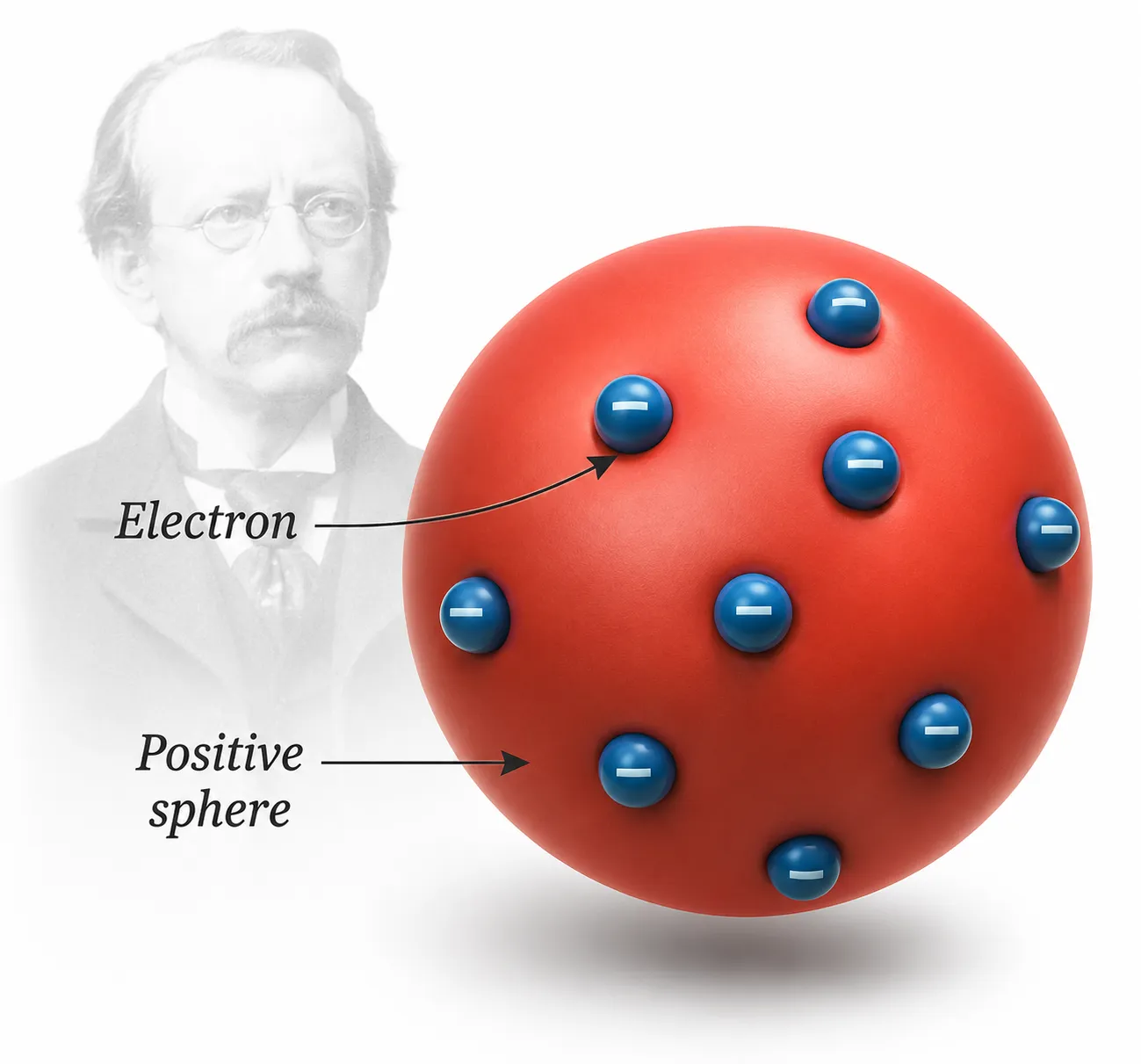

Thomson’s model of an atom

Thomson’s Atomic Model — Plum Pudding Model

The puzzle:
Electrons are negative, but atoms are neutral ➜ where is the positive charge?

Thomson’s solution:

An atom is a sphere of positive charge with electrons distributed throughout it

Analogies used:

🍮 Pudding (positive) with plums (electrons) embedded ➜ Plum pudding model
🍉 Watermelon — red pulp = positive charge, seeds = electrons

Significance:
First genuine attempt to explain how positive and negative charges stay balanced in an atom

Testing Thomson’s model: The gold foil experiment

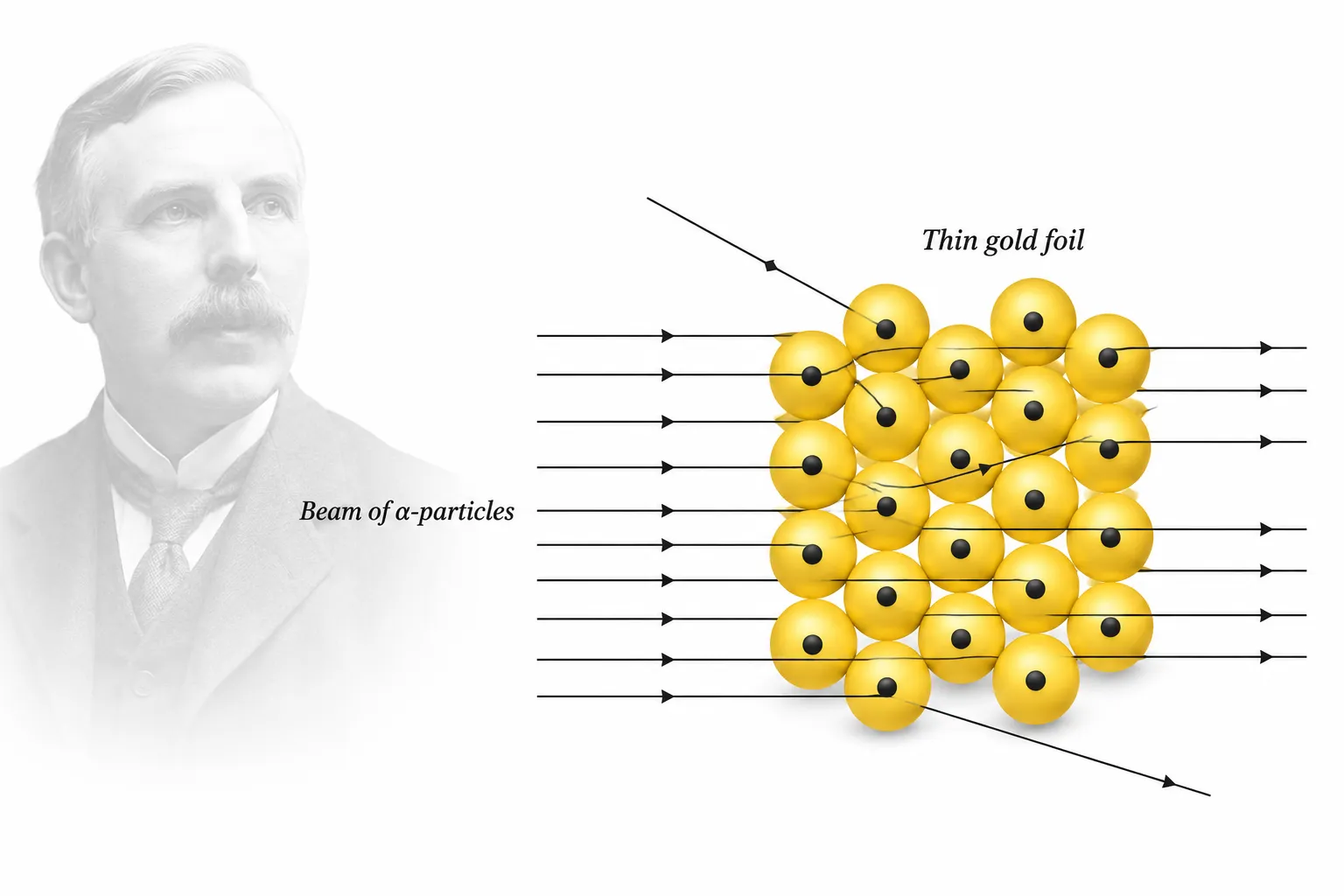

Gold Foil Experiment (1911)

Who: Geiger & Marsden, under Ernest Rutherford.
Purpose: To test Thomson’s atomic model

Setup
➽ A narrow beam of alpha (α) particles fired at a very thin gold foil
➽ α-particle = positively charged, emitted from radioactive elements
(later known: = helium nucleus, 2 protons + 2 neutrons)

Expected vs. Actual Results

➽ This deflection from a straight path = scattering
∴ Also called an α-ray scattering experiment

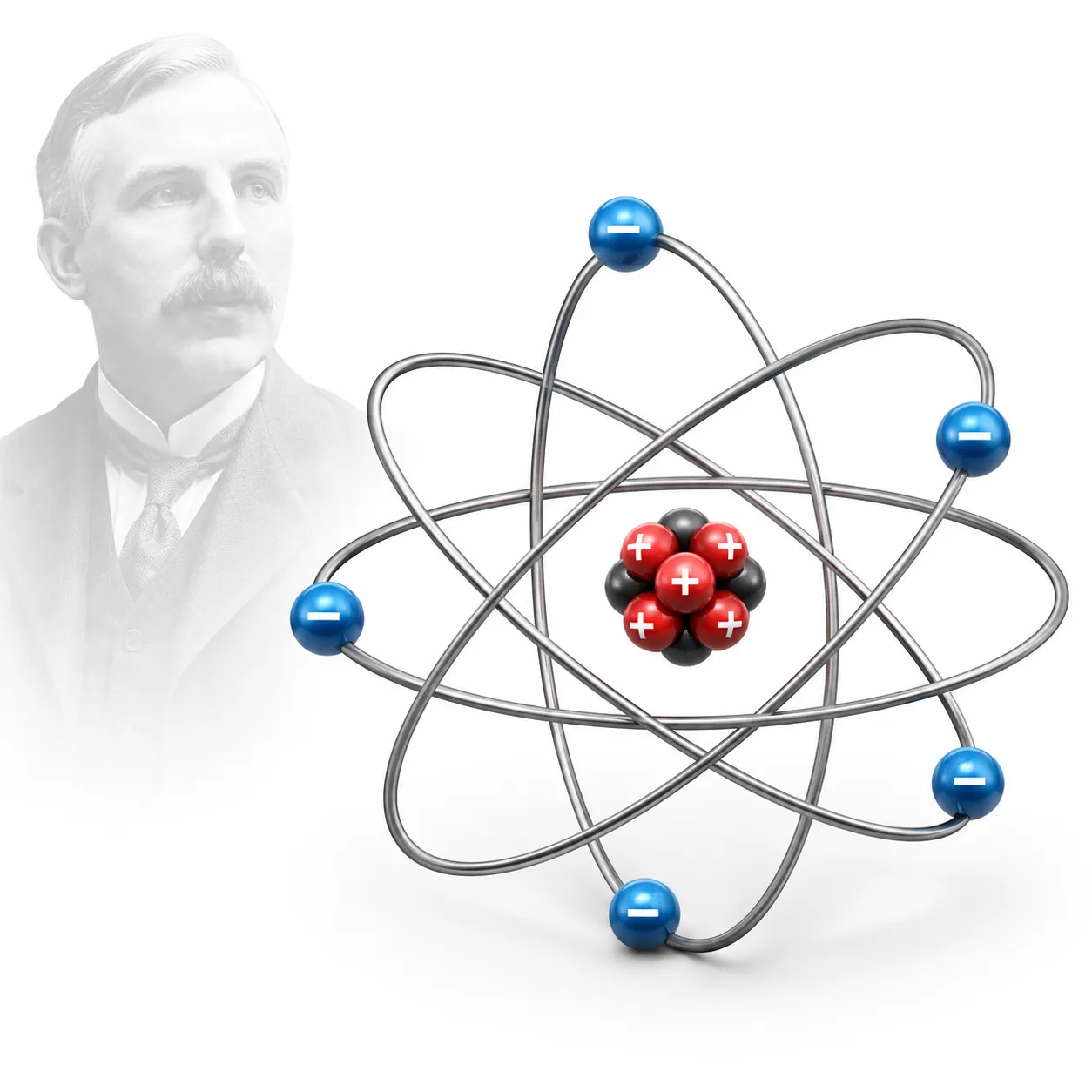

A. Rutherford’s model of an atom

Also called: Planetary Model

Size Comparison

The nucleus is 10⁵ (one lakh) times smaller than the atom
🏏 Analogy: If atom = cricket ground (100 m), nucleus = a pepper grain at the centre

vs. Thomson’s Model

➽ Better — successfully explained gold foil experiment results
➽ Limitation — could not explain the stability of the atom

B. Limitations of Rutherford’s model

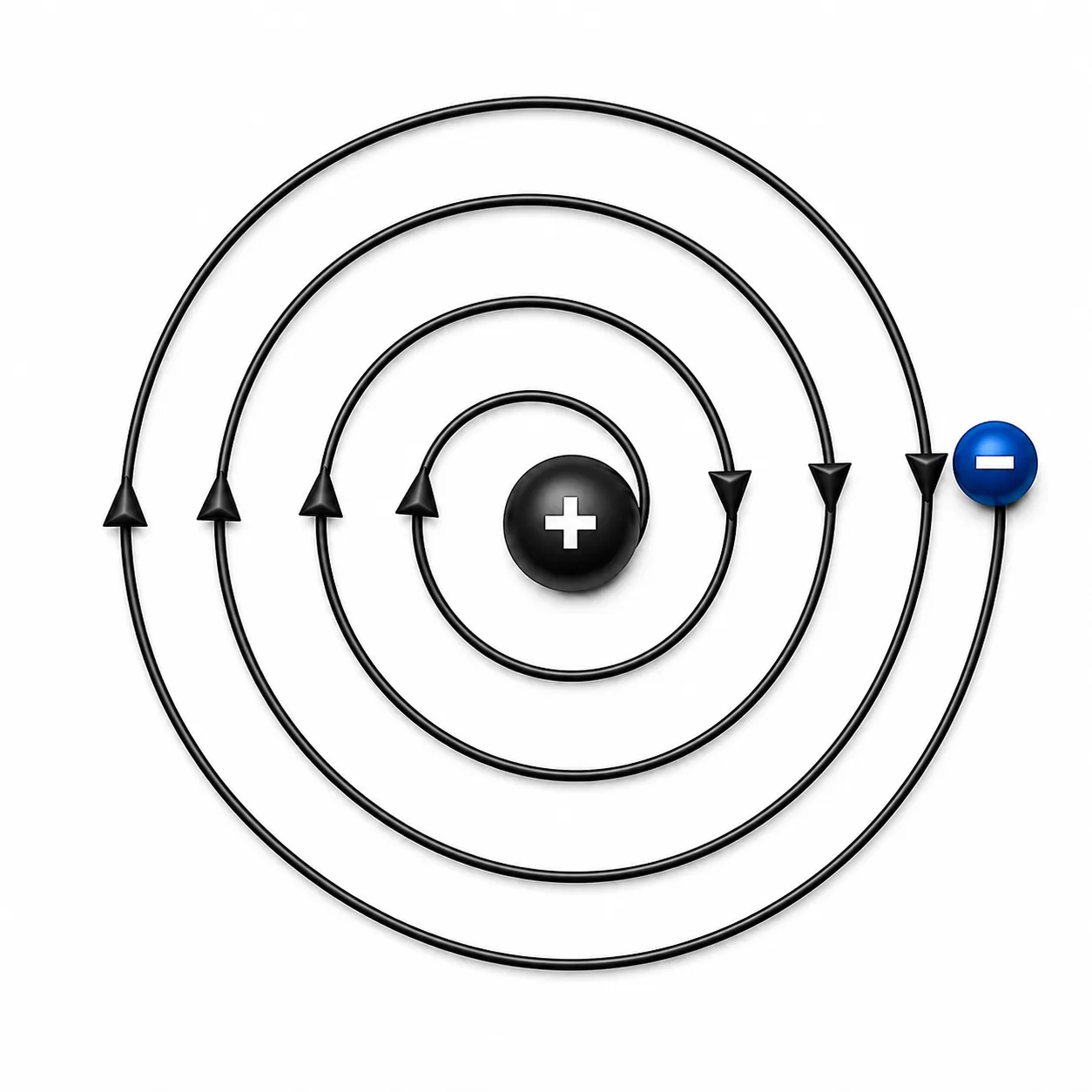

The Stability Problem

The logic:
➽ Electron moves in a circular path ➜ constantly changing direction ➜ accelerating
➽ An accelerating charged particle loses energy
➽ Losing energy ➜ electron spirals inward ➜ falls into nucleus
∴ The atom should collapse

The reality:
➽ Atoms are stable — matter around us stays intact
➽ Rutherford’s model couldn’t explain this contradiction

∴ A new explanation was needed for how electrons stay in motion without collapsing into the nucleus

C. Discovery of the proton

Electrical Neutrality of Atoms

For an atom to be neutral:
no. of protons = no. of electrons

Examples:

Total +ve charge = Total −ve charge ➜ atom is electrically neutral
This holds for all atoms

Bohr’s model of the atom

Purpose: Explain why atoms are stable

Postulates

➽ Electrons move in fixed circular paths around the nucleus
➽ These paths = stationary states/orbits/shells/energy levels
➽ Each shell has a definite, constant energy
➽ Electrons do not lose energy while in a fixed shell

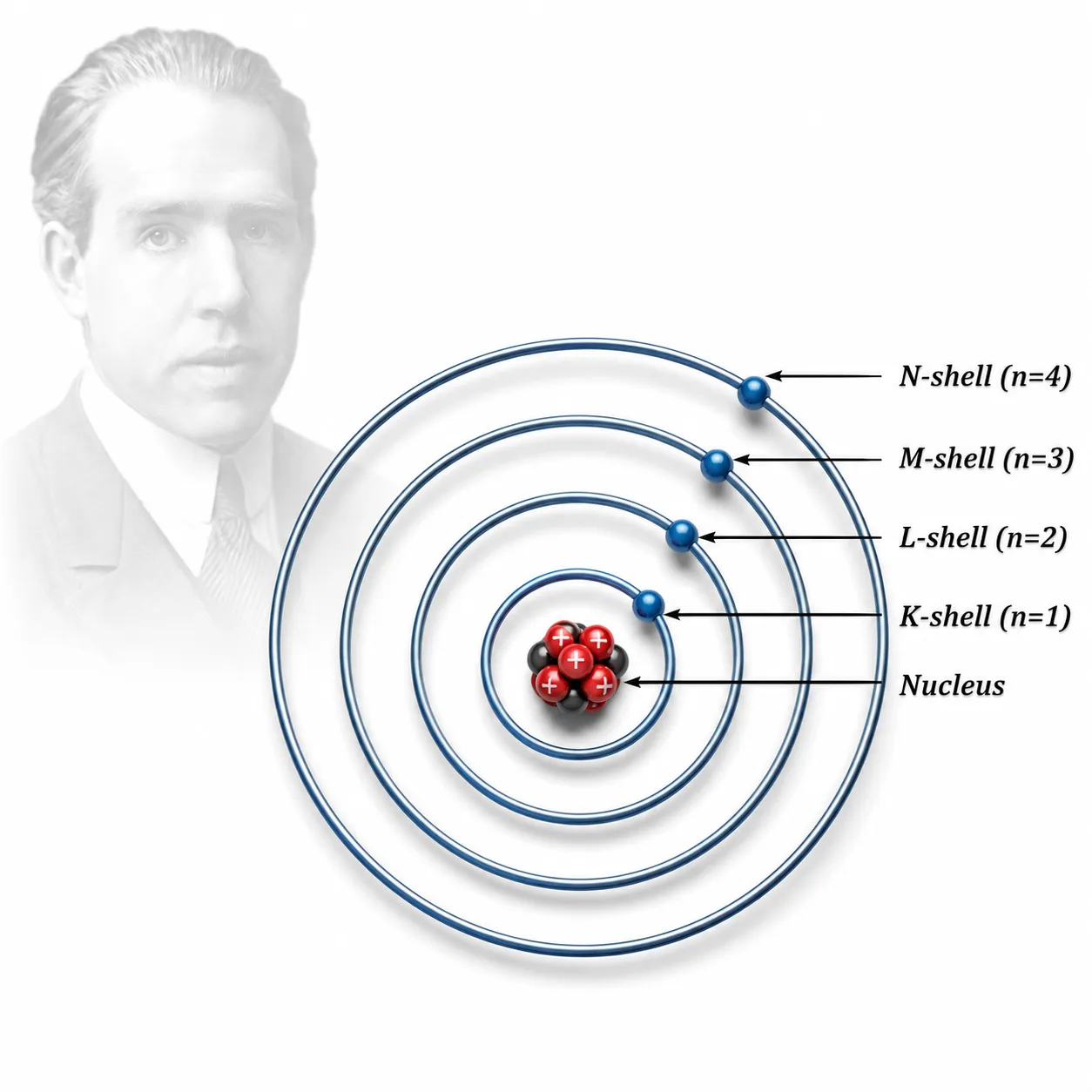

Shells & Energy Levels

➽ Shells: K, L, M, N… or n = 1, 2, 3, 4…
➽ K-shell (n=1) = closest to nucleus = lowest energy
➽ Energy increases as we move away from the nucleus
➽ Each shell holds only a certain number of electrons
➽ Electrons can only exist in shells, not between them

Electron Transitions

➽ Electrons move between shells by absorbing or releasing energy
➽ Energy absorbed/released = exact difference between the two energy levels

How It Explains the Stability of Atoms

➽ Rutherford’s problem: the moving electron should lose energy & collapse
➽ Bohr’s fix: introduced stationary states as a postulate
➽ In a stationary state ➜ energy remains constant even while in motion

∴ No energy loss ➜ no collapse ➜ atom stays stable

Bohr’s model explained many experimental observations and was
a major step in understanding atomic structure.

What Components Contribute to the Mass of an Atom?

The Puzzle

➽ Helium has 2 protons, yet its mass = 4× that of hydrogen (not 2×)
∴ Something else in the nucleus was adding mass without charge

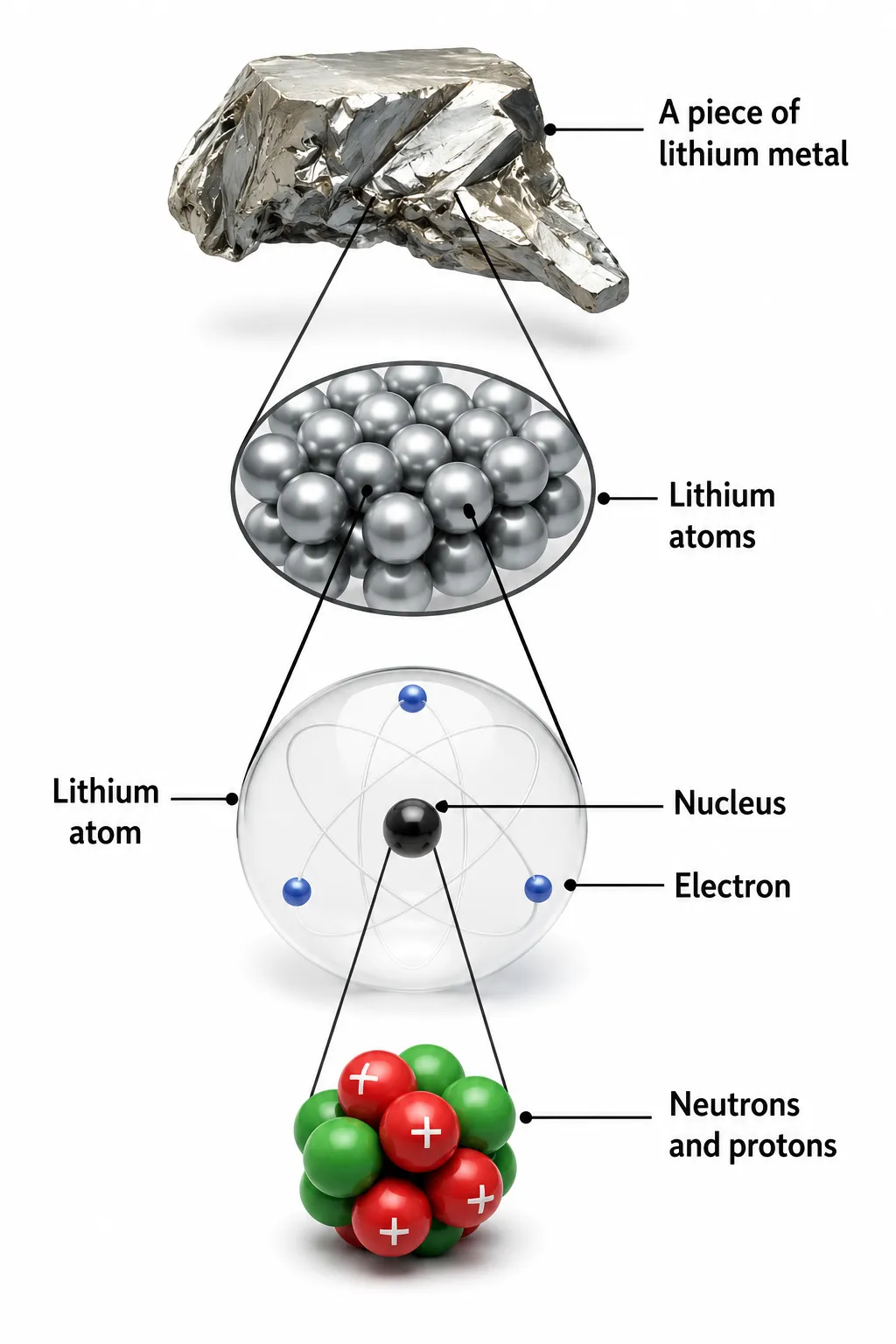

Discovery of the Neutron

By James Chadwick (1932)

➽ Chadwick (student of Rutherford) discovered a new subatomic particle
➽ Neutron (n) = mass ≈ proton, but no charge
➽ Found in the nucleus of all atoms except hydrogen
∴ Atomic mass comes mainly from protons + neutrons in the nucleus

Subatomic particles

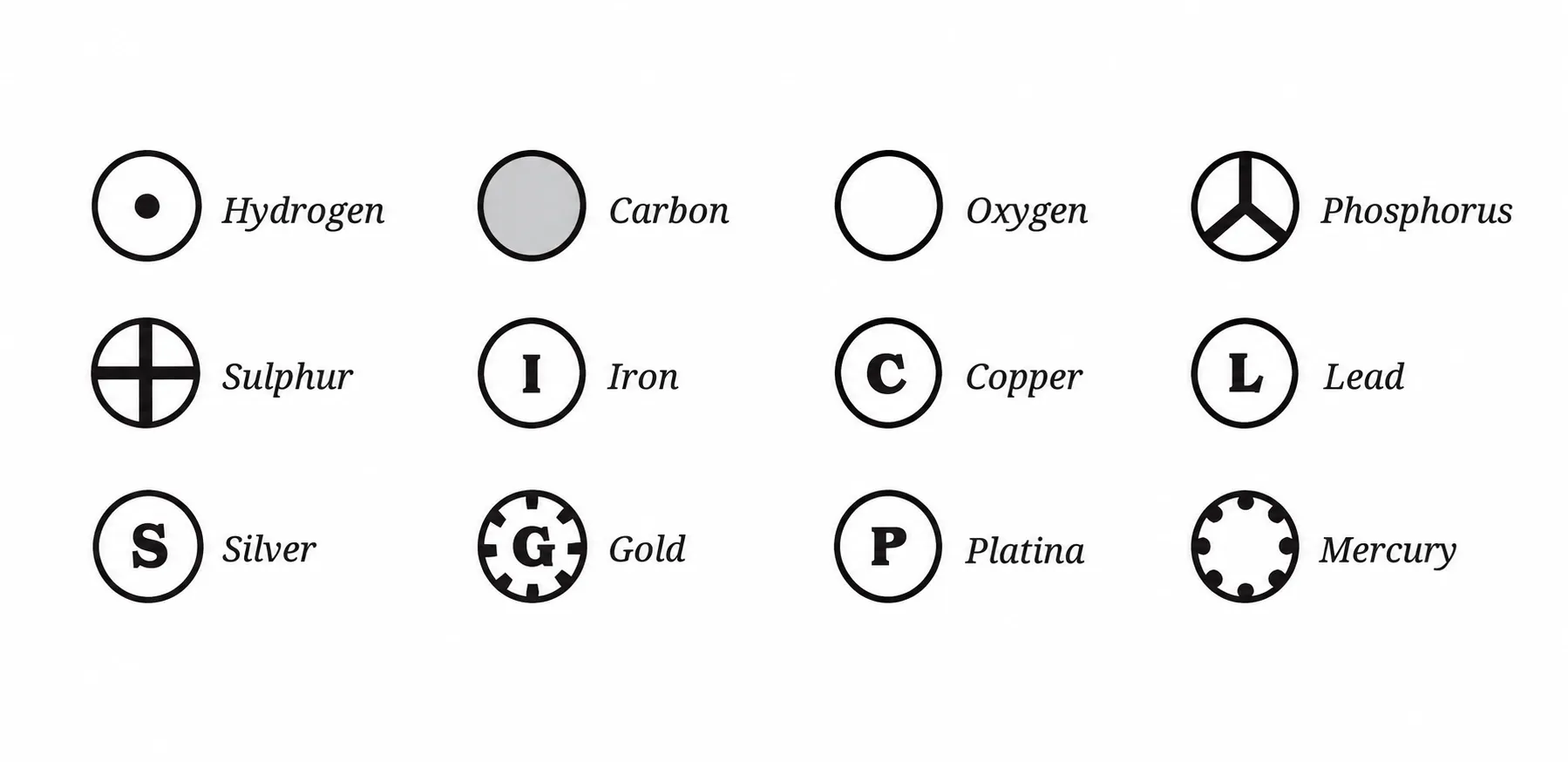

Symbols of Elements

1869: 69 elements known ➜ Today: 118 elements

Why Symbols?

Internationally recognised ➜ scientists worldwide can communicate regardless of language

Common Elements & Their Symbols

Symbols from Other Languages

Atomic Number

Definition:
The number of protons in the nucleus of an atom is called its atomic number, designated by the symbol Z

➽ Z determines the identity of an element and its chemical behaviour
➽ Since atoms are neutral: no. of protons = no. of electrons
➽ Each element has a unique Z ➜ no two elements share the same atomic number

Examples

Key point:
Atomic number uniquely identifies an element — elements with different atomic numbers are always distinct from each other.

Mass Number

Definition
The total number of protons and neutrons in the nucleus is called the mass number, denoted by A

➽ Protons + Neutrons in nucleus = Nucleons
➽ A = no. of protons + no. of neutrons
➽ Electron mass is negligible ➜ ignored in calculations

Examples

Standard Atomic Notation

Mass number on top, Atomic number at bottom, Symbol in middle

Example — Carbon:

• Symbol = C, Z = 6, A = 12
• Written as: ¹²₆C

How Are Electrons Distributed in Different Energy Levels?

Bohr-Bury Rules

1. Max electrons per shell = 2n^²

2. Outermost shell can hold max 8 electrons (except K-shell ➜ max 2)

3. Filling order — stepwise, from nucleus outward: K ➜ L ➜ M ➜ N…

• Next shell fills only after the previous one is complete

Examples

Key point:
Electrons always fill the innermost available shell first before moving to the next.

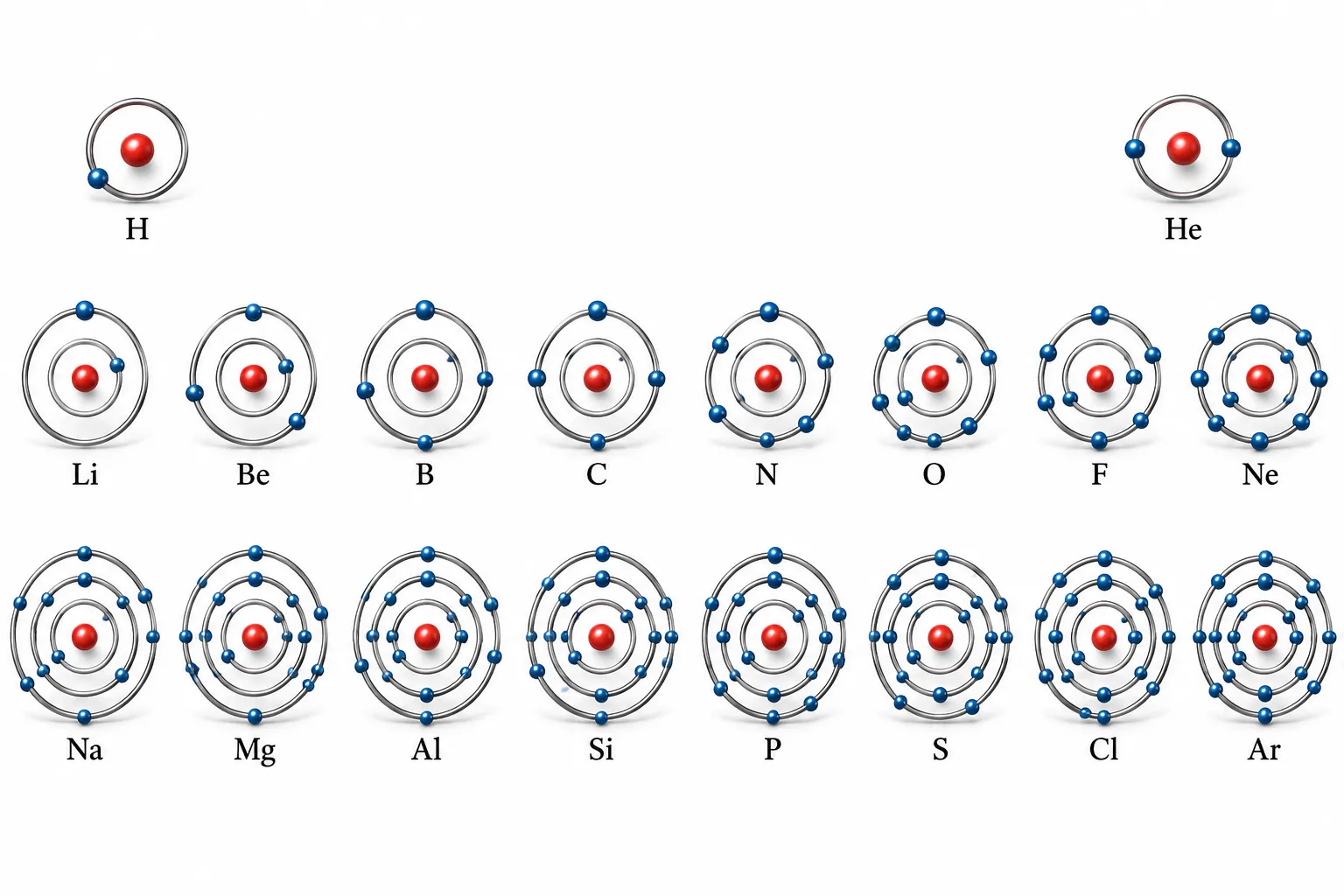

Building up atoms

Electronic Configuration
The distribution of electrons among various shells of an atom is called its electronic configuration

➽ Built by adding one electron for each increase in atomic number
➽ Electrons fill shells in order: K ➜ L ➜ M ➜ N…
➽ Follow Bohr-Bury rules for max electrons per shell

Maximum Electrons Per Shell: The formula $(2n^{2})$ calculates the capacity, where “n” is the shell number (K, L, M, N…):

• $(K)-shell \\ (n=1): 2(1)^2 = 2\ electrons$
• $L-shell \\(n=2): 2(2)^2 = 8\ electrons$
• $(M)-shell \\(n=3): 2(3)^2 = 18\ electrons$
• $(N)-shell \\(n=4): 2(4)^2 = 32\ electrons$

Symbols, atomic numbers, number of protons, number of neutrons, number of
electrons, and the electronic distribution of atoms of the first eighteen elements

Click on the elements to reveal the details

Combining Capacity of an Atom: Valency

Definitions
➽ Valence shell = outermost shell containing electrons
➽ Valence electrons = electrons present in the valence shell
➽ Valency = number of electrons lost, gained, or shared to complete the octet

Octet Rule

➽ Octet = 8 electrons in valence shell ➜ stable & unreactive
➽ Exception: Helium ➜ stable with just 2 electrons
➽ Incomplete valence shell ➜ atom is reactive
➽ Atoms lose, gain, or share electrons to complete their octet

How Valency is Determined

Examples

Combining Capacity

➽ Measured against H or Cl (both have a combining capacity of 1)
➽ H₂O ➜ O combines with 2H ➜ combining capacity of O = 2
➽ NH₃ ➜ N combines with 3H ➜ valency of N = 3
➽ MgCl₂ ➜ Mg combines with 2Cl ➜ valency of Mg = 2

Note: Atoms with a complete octet already (noble gases) neither lose nor gain electrons ➜ valency = 0

A Deeper Look into Atomic Structure

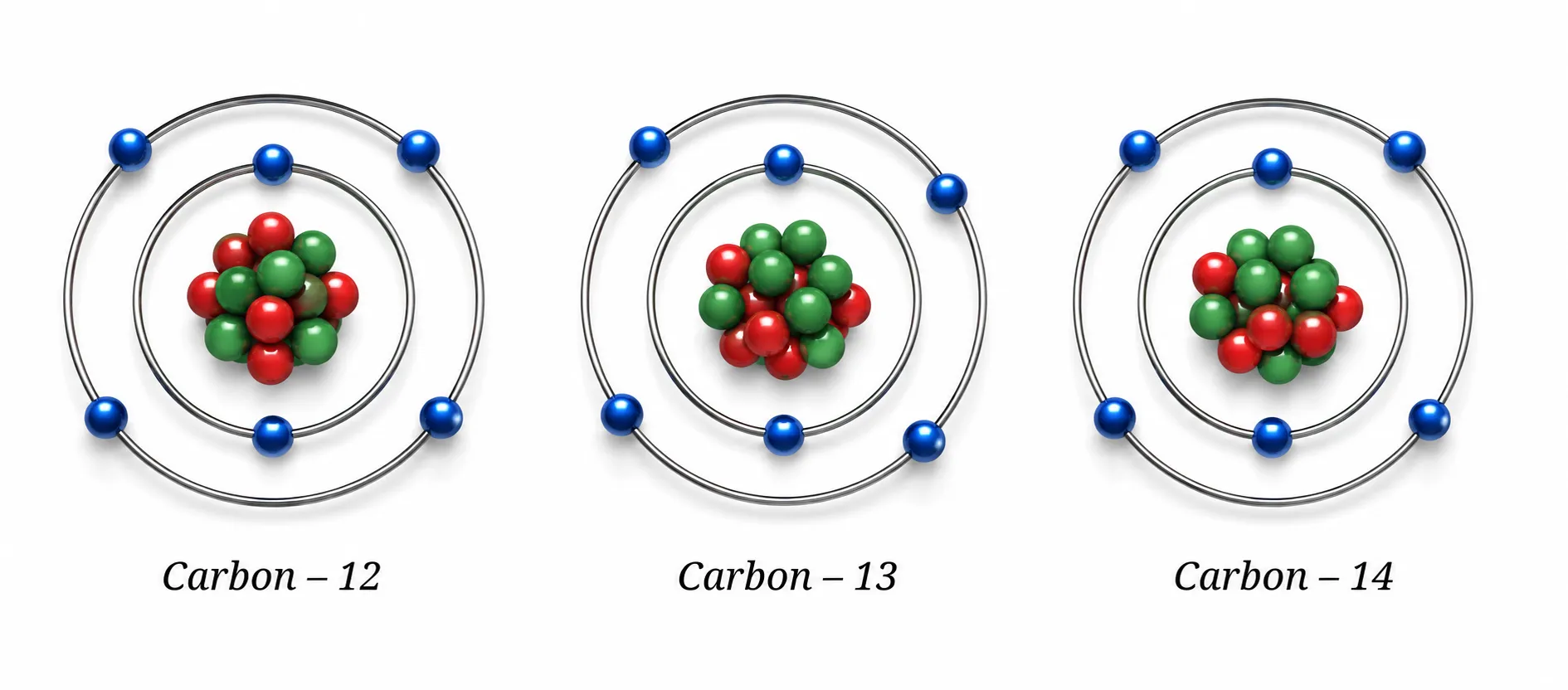

Isotopes

Definition
Atoms of the same element with the same atomic number (Z) but different mass numbers (A) due to different numbers of neutrons are called isotopes

Same protons, different neutrons ➜ different mass
Called ‘twin atoms’

Examples

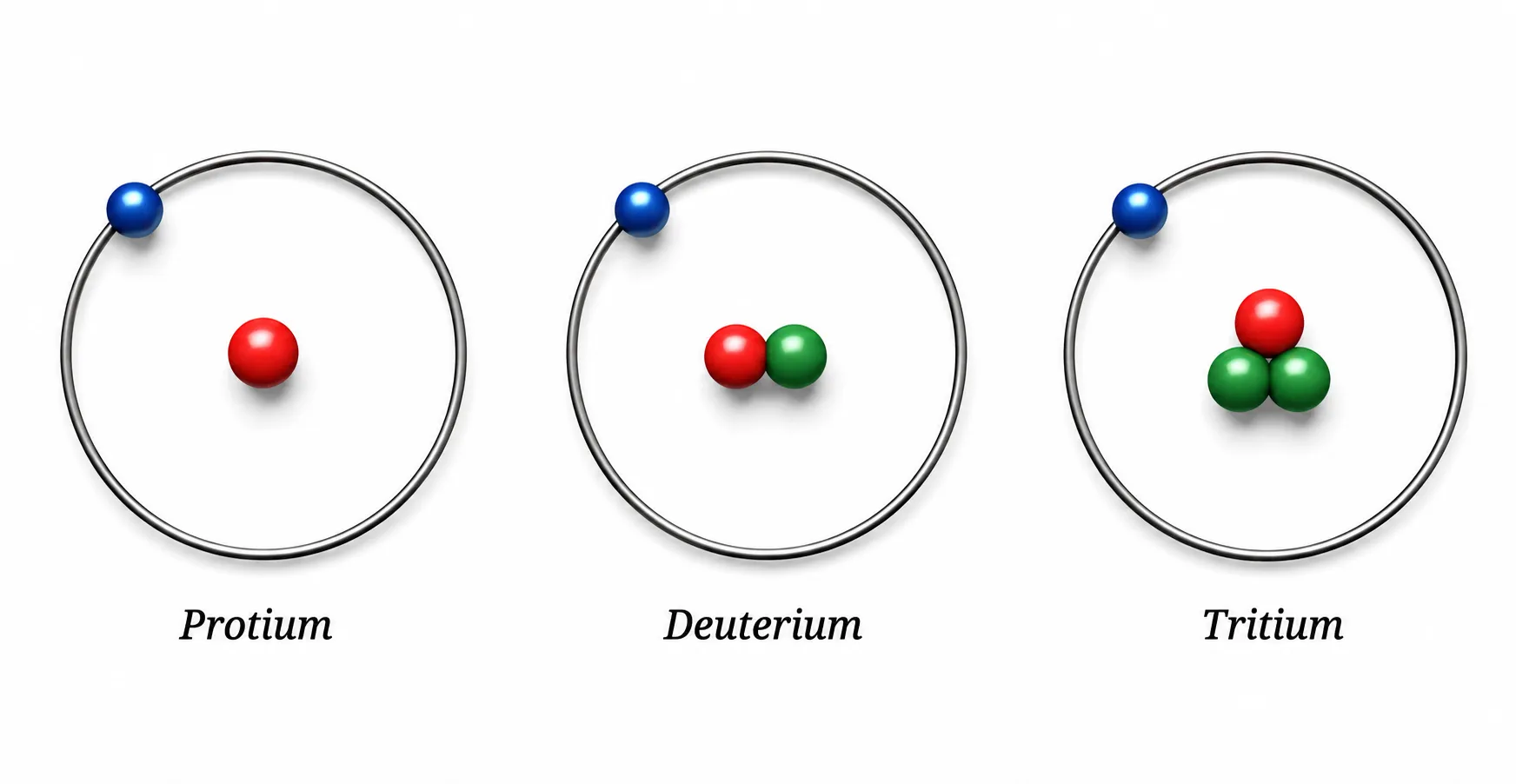

Hydrogen — 3 isotopes

Properties of Isotopes

➽ Chemical properties ➜ same (same electrons, same electronic config, same valence electrons)
➽ Physical properties ➜ different (e.g. boiling point, melting point)

Uses of Isotopes

A. Average atomic mass

The Problem

Chlorine has two isotopes: ³⁵Cl and ³⁷Cl ➜ which mass do we use?

For Chlorine:

• ³⁵Cl ➜ ~75% abundant
• ³⁷Cl ➜ ~25% abundant

What Does 35.5 u Mean?
➽ No single Cl atom has a mass of 35.5 u
➽ It means: in 10 lakh Cl atoms ➜ 7.5 lakh are ³⁵Cl + 2.5 lakh are ³⁷Cl
➽ 35.5 u = the statistical average across all naturally occurring Cl atoms

Simple vs Weighted Average

Isobars

Definition
Atoms of different elements with the same mass number (A) but different atomic numbers (Z) are called isobars

Example:

Different elements, different protons ➜ but same total nucleons

Isotopes vs Isobars

Beyond Bohr — Where the Story Goes

➽ Bohr’s model was a major step, but not entirely correct
➽ Electrons don’t follow fixed, well-defined paths
➽ Modern view: electrons exist as electron clouds around the nucleus
vWe can only predict regions of probability, not exact positions

The exploration of atomic structure is still ongoing — exciting discoveries still lie ahead!
